Screw Mount Fused DC 5-32V 10 Position Pluggable Terminal Block Power Distribution Module
4.6 (132 items)
Limited Time SaleUS$27.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211028073 | Release Date | 2026/04/04 | List Price | US$18.00 | Model Number | 211028073 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1, Operating voltage DC 5 to 32V. Maximum total input / output current 30 Amp. 2, Input: Maximum current 30 Amp for per position. Double positions + and - polarity terminal, support power supply expansion connect to other modules. Pin pitch 7.62mm/0.3", wire size 26 - 10 AWG, stripping length 8mm, Metric M3 slotted screw. 3, Output: 10 position pluggable terminal blocks. Maximum current 5 Amp for per position (the terminal highest working current can support up to 10 Amp, but factory pre-installed fuse value is 5 Amp, if you want more output current, please change the fuse). Pin pitch 5.08mm/0.2", wire size 28 - 12 AWG, stripping length 7mm, Metric M2.5 slotted screw. 4, Pluggable fuse holder, can support medium blade ATO / ATC fuse. Each output channel has a green LED indicator, when the fuse is blown or pulled out, the LED indicator will be off. 5, The package comes with two screws, which can support screw mount, and can also support width 35mm DIN rail mount, of course you can also place it directly on your test desktop. 6, PVC material PCB housing carrier. UL 94-V0 certified FR-4 fiberglass dual copper layers PCB. UL CE CQC certified terminal blocks.
- Operating voltage DC 5 to 32V. Maximum total input / output current 30 Amp
- Input: Maximum current 30 Amp for per position. Double positions + and - polarity terminal, support power supply expansion connect to other modules. Pin pitch 7.62mm/0.3", wire size 26 - 10 AWG, stripping length 8mm, Metric M3 slotted screw.
- Output: 10 position pluggable terminal blocks. Maximum current 5 Amp for per position (the terminal highest working current can support up to 10 Amp, but factory pre-installed fuse value is 5 Amp, if you want more output current, please change the fuse). Pin pitch 5.08mm/0.2", wire size 28 - 12 AWG, stripping length 7mm, Metric M2.5 slotted screw.

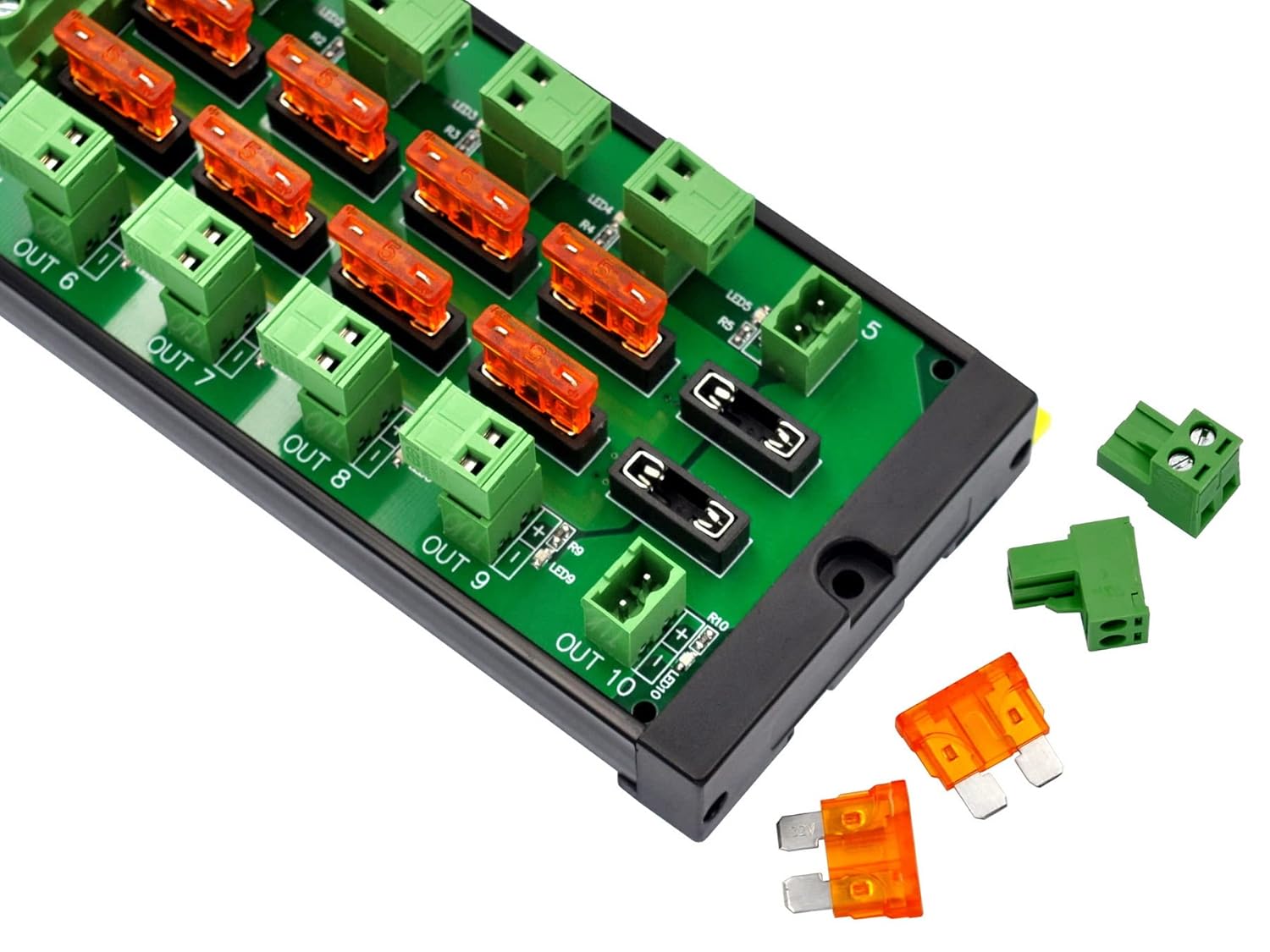

- Pluggable fuse holder, can support medium blade ATO / ATC fuse. Each output channel has a green LED indicator, when the fuse is blown or pulled out, the LED indicator will be off.
- The package comes with two screws, which can support screw mount, and can also support width 35mm DIN rail mount, of course you can also place it directly on your test desktop.
- PVC material PCB housing carrier. UL 94-V0 certified FR-4 fiberglass dual copper layers PCB. UL CE CQC certified terminal blocks.
| Color | black_or_gray |
|---|---|
| Model | D-1522B |
| Pitch | 7.62 Millimeters |
| Voltage | 32 Volts |
| Brand Name | OONO |
| Part Number | D-1522B |
| Manufacturer | CZH-LABS |
| Material Type | PVC |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 5 Amps |
| Number Of Poles | 10 |
| Specification Met | RoHS |
| Number Of Contacts | 10 |
| Included Components | Distribution Module |
| Number of Positions | 10 |
