Current Clamp Meter AC/DC Multifunctional Mini BNC Connector Anti Interference Sensor for Electrical Testing 035AD

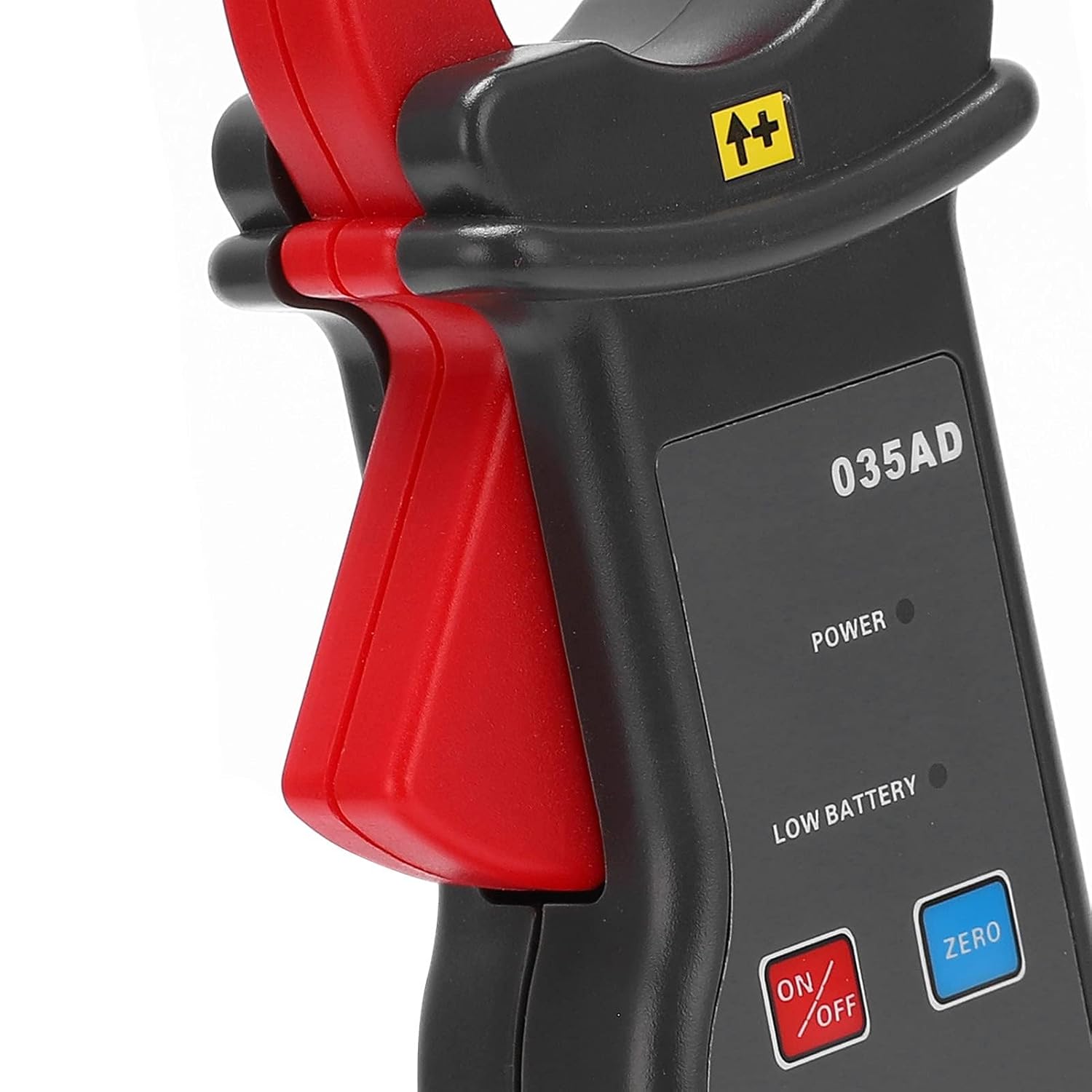

How to Use: 1. Clamp the live wire or naught wire alone to measure the current of the line. (Note that 1 stick should be stuck) 2. Clamp the live wire and naught wire together to measure the single‑phase leakage current. (Note that 2 sticks should be stuck) 3. Clamp the ground wire to measure the leakage current of the ground wire of the electrical equipment. (Note that 1 stick should be stuck) Specification: Item Type: Current Sensor Model: 035AD Battery: 1x9V 6F22 Battery (Battery Not Included) Material: ABS+Permalloy Range; Resolution; Accuracy Grade 0.0A-1000A AC/DC; 0.1A; 2 Other Parameters power supply: 9VDC 6F22 (Battery Not Included) CT size: Approx. 30x35mm / 1.2x1.4in Range: 0.0A-1000A AC/DC output : 1mV/1A Resolution: AC/DC: 0.1A Accuracy class: ±2.0% Phase error: ≤3° output method: Inductive Current Output Output Interface: BNC Plug/4.0mm Double Banana Plug/3.5mm Audio Plug (Optional), Cable Length 1.5m Clearing method: ZERO Button to Reset working frequency: DC-400Hz Security Level:CATⅢ600V Operating temperature: -15°C-50°C Dielectric strength:AC 3700V/Rms (Between Iron Core and Shell) Clamp meter quality: Approx. 180g / 6.3oz physical dimension: Approx. 122x70x33mm / 4.8x2.8x1.3in Package List: 1 x Current Sensor (Battery Not Included)

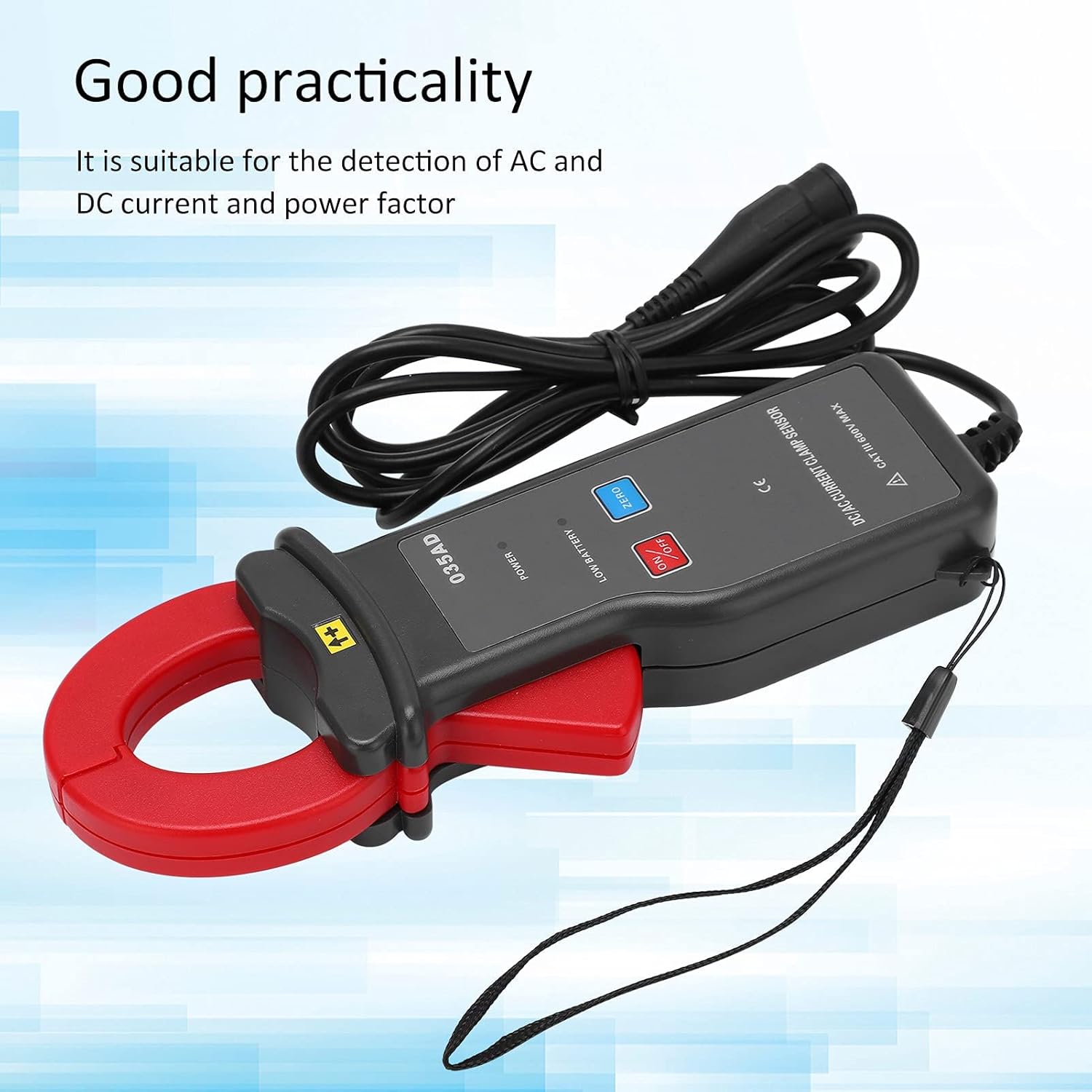

• Multi Testers: Good practicability, it is suitable for the detection of AC and DC current, phase, electric energy, power, power factor, etc, and is widely used in the power industry.
• Easy to Use: Adopting Hall induction technology, it is not necessary to disconnect the tested circuit during detection, and the clamp head iron core is made of special alloy, which is especially suitable for places with dense wiring (electricity metering system, high speed rail system, automobile circuit maintenance, etc.).
• Strong Anti-interference Ability:Using permalloy iron core and magnetic shielding technology, it has strong anti interference ability, and the data can reach high industrial standards.
• Uses: Supports collocation use, it can be connected to phase detection analyzers, industrial control devices, data loggers, oscilloscopes, harmonic analyzers, power quality analyzers, digital multimeters, etc. It is widely used in electric power, communications, meteorology, railways, oil fields, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields.
• Improve Work Efficiency: Using a split core and a hole (hole element) combination, it can simultaneously detect AC and DC current, which can help you save time and effort, and improve the efficiency of detection.
