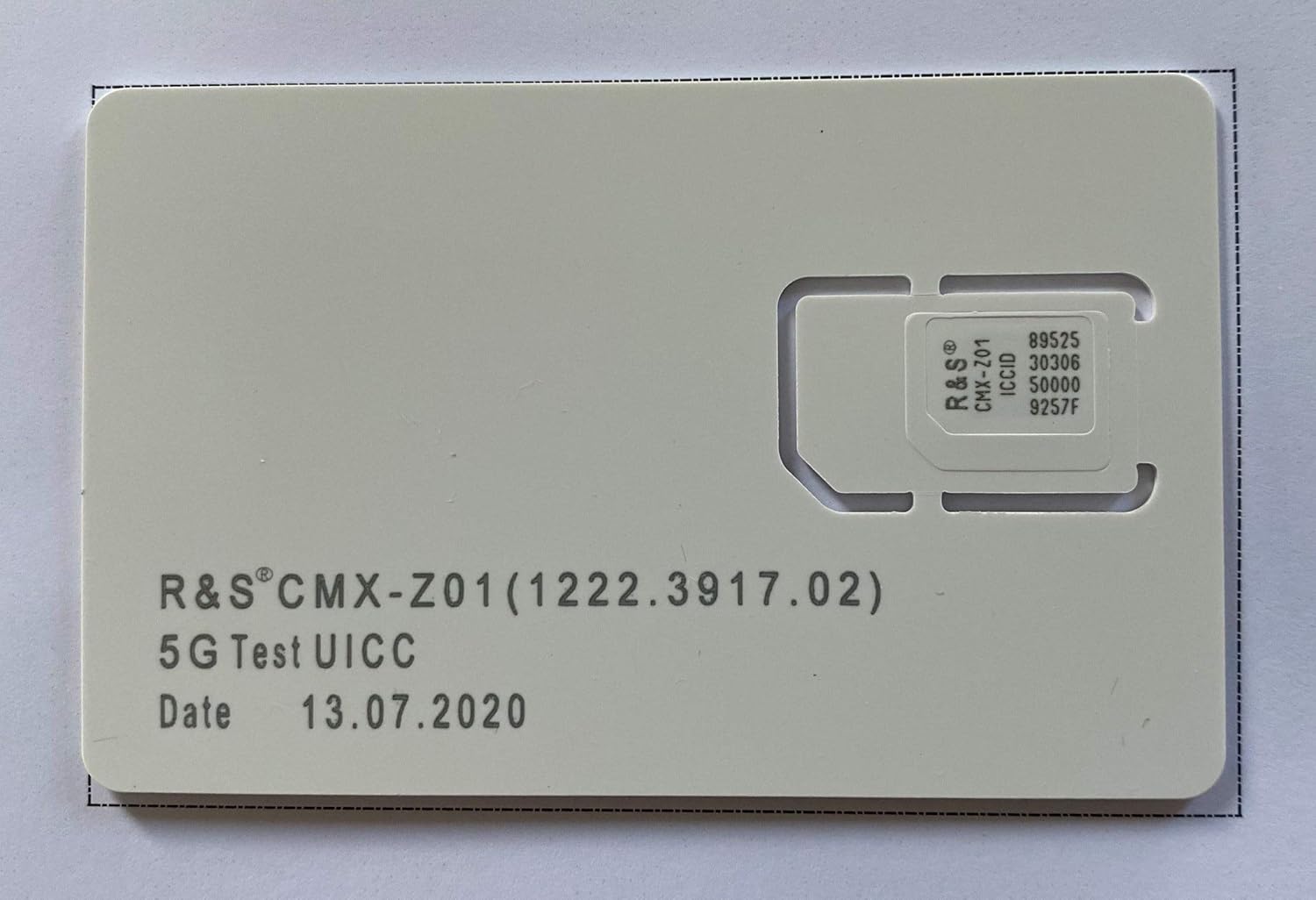

CMX-Z01

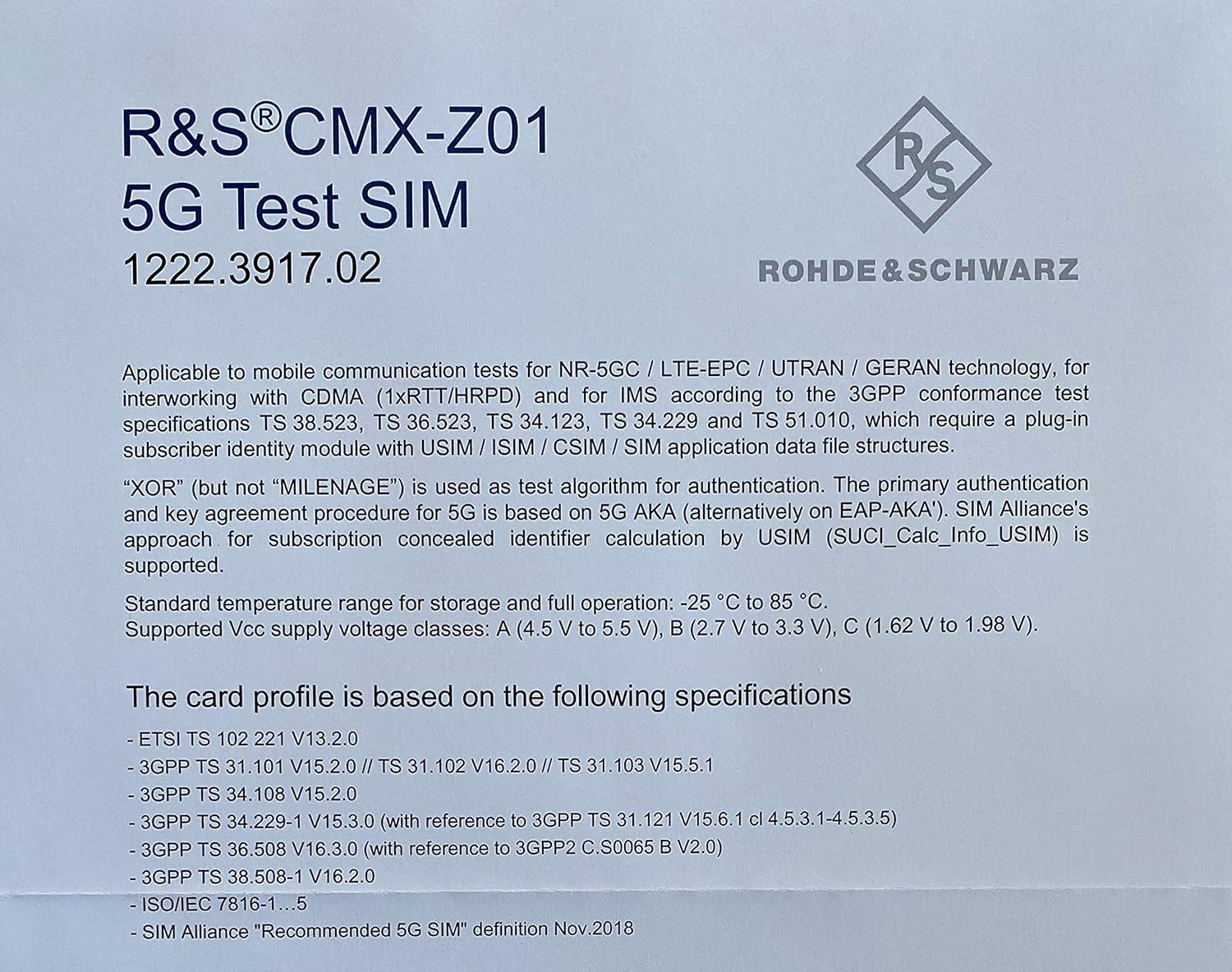

New 5G Test UICC: A new technology brings lots of new features and possibilities and one very important little thing to consider as well is the Test UICC card, which is used for all kinds of tests of cellular devices. With introduction of NR technology 3GPP has also defined new 5G specific entries on the UICC card - it is time to replace the current CMW-Z06 with a new model CMX-Z01. Compatibility: The CMX-Z01 fulfills all the new requirements, which were introduced with 3GPP Rel.15 NR, of course. At the same time it is 100% backward compatible with CMW-Z06. Therefor it will replace the CMW-Z06, which will be no longer available. Note, that this new SUICC is mandatory for NR SA (Stand Alone) mode. For NR NSA the CMW-Z06 will do. Supported Specifications: Applicable to mobile communication tests for NR-5GC/ LTE-EPC/ UTRAN/ GERAN technology, for interworking with CDMA (1xRTT/HRPD) and for IMS according to 3GPP Conformance Test Specifications TS 38.523, TS 36.523, TS 34.123, TS 34.229 and TS 51.010, which require a plug-in subscriber identity module with USIM/ ISIM/ CSIM/ SIM application data file structures. The card profile is based on the following specifications - ETSI TS 102 221 V13.2.0 - 3GPP TS 31.101 V15.2.0 // TS 31.102 V16.2.0 // TS 31.103 V15.5.1 - 3GPP TS 34.108 V15.2.0 - 3GPP TS 34.229-1 V15.3.0 (with reference to 3GPP TS 31.121 V15.6.1 cl 4.5.3.1-4.5.3.5) - 3GPP TS 36.508 V16.3.0 (with reference to 3GPP2 C.S0065 B V2.0) - 3GPP TS 38.508-1 V16.2.0 - ISO/IEC 7816-1…5 - SIM Alliance "Recommended 5G SIM" definition Nov.2018. Form Factors: All Formfactors are supported: Mini (2FF), Micro (3FF) and Nano (4FF).

• Replaces the CMW-Z06
