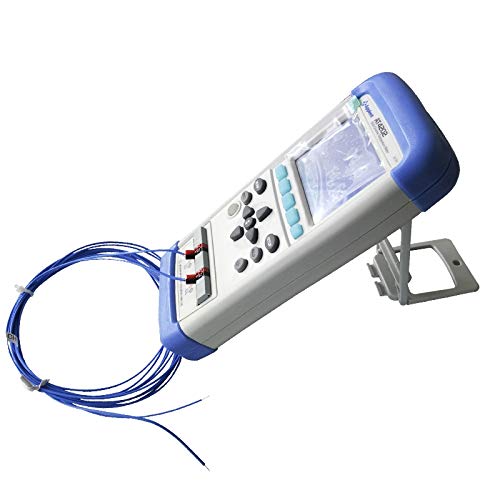

AT4202 2 Channels Temperature Indicator

AT420x handheld multi-channel temperature meter adopts high-performance ARM micro processor, can collect multi-channel temperature data simultaneously and response quickly. AT4208 has the function of broken thermocouple checking, high/low beep function and communication transmission. Ultra-low power consumption and high density SMD assembly technology. TFT true color LCD display, keypad and touch screen double control. It is Li- battery powered. USB communication. Switch in both English and Chinese. The standard computer software can realize the data analysis. TF card storage and USB disk storage which can real time store samping data. SPECIFICATIONS AT4202AT4204AT4208 GraduationThermocouple：J/K/T/E/S/N/B/R Accuracy: 0.2℃ ± 2 digits Range: -200C~1300C（variation depend on graduation） Resolution: 0.1C Channel 2 channels 4 channels8 channels Speed Low：1s/channel Correction Error correction for each channel Comparator High & low beep function Interface: Mini-USB interface, charging interface, USB-DISK Interface Software ATS42 data acquisition software Cold Junction Compensation Accuracy：0.5℃ Others2.8 inches 16M TFT true color LCD display, touch screen, USB communication, compatible SCPI instruction set, switch in both English and Chinese；adjustable back light; automatic power off GENERAL FEATURES Power Supply Input：100-240V~50/60Hz 0.35A Output：9V 1A DC Battery Parameters 8.4V, Li, 1400mA rechargeable battery Charging time Single continuous charging time: Max 200Mins Working Time Brightness 30%≥14 hours, Brightness 50%≥12 hours, Brightness 100%≥9 hours Size Outside（mm）：90 (Width)x190(Height)x31 (Depth) 400g ORDERING INFORMATION Accessories K thermocouple 2/4/8 teams (2m/team) ATL909: DC power adaptor ATL805: Lithium battery ATL105Mini-USB communication cable ATS42xx data acquisition software
